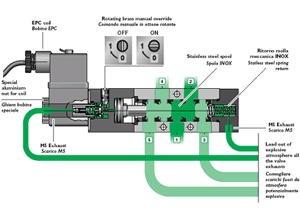

VASLCO ATEX valves satisfy all directives 94/9/EC to avoid mechanical risks of ignition in explosive atmosphere (category II2GD).Design,materials and technical solutions are made to prevent mechanical sparks,electrostatic charges,heating of surfaces due to fric-tion,etc.All these solutions make Vesta ATEX valves in “constructional safety”.They grant the earthing of all their parts,due to alo-dine surface treatment of body and heads operator.This treatment grants protection to products,while allows electrical conduction.All the parts are Atex compliant and valves have overcome Atex impact tests and protection degree IP65 tests.Use only EPC coilson Vesta ATEX solenoid valves.

• Atex category II2GD
• IP65 protection degree
• Aluminium body and heads operator with alodine surface treatment.
• NBR seals
• Medium T:0°<Tfluido<25°C
• Enviroment T:-5°<Tamb<50°C
• Medium:filtered air
• Lubrication not required
• For use instructions please see www.vaslco.com
• For 94/9/EC atex directive
• Classificazione atex II2GD

Standard voltage....................................24 V DC24, 48, 110, 220 V AC (50/60Hz)
Power...........................................................2,5Watt in DC;3 V A in
ACVoltage.........................................................±10%
Ambient temperature range.........-20 °C ÷+50°CElectrical
connection.........................By triple cable,3m length
Solenoids EPC series follow II 2GD EEX mb T5 T100°CIP66,
according to standard ATEX 94/9/CE:
EEx....Component following the EN 50015 ...EN50028 standards
m..........Resin Incapsulated
II...........For surface application
T5........Maximum working temperature (see technical features).
